Test029_Sofa_S1'+two(I0+C0)_R1

Table 1. Test Information
Name
Test029_Sofa_S1'+two(I0+C0)_R1
Date
Description

K-Loveseat (Polyurethane Foam) 1" propane flame ignition. 57199.3g. Camera setting: F4.0,1/60,Gain:0. LED 100% power
Specimen
Sofa (K-Loveseat)
Ignition
propane wand
Project ID (s)
Design Fires - Residential and Office Items
Test Director
Hamins

Timelapse Video with Heat Release Rate Plot

Table 2. Summary of Test Results
Measurement Value Uc Unit
Peak Heat Release Rate, PHRR
1,984
102
kW
Time to Peak Heat Release Rate
6.25
0.17
min
Total Heat Released, THR
811
45
MJ
Gas Burner Total Heat Released, NGTHR
0
 -
MJ
Heat Release Quality Confirmation, HRQC
 Not measured -
MJ/MJ
Net Specimen Mass (gravimetric), NM = Mi-Mf
52.116
0.028
kg
Net Effective Heat of Combustion = THR / NM
15.56
0.86
MJ/kg
O2 Yield = O2 Consumed / NM
1.205
0.039
kg/kg
CO2 Yield = CO2 Generated / NM
1.491
0.054
kg/kg
CO Yield = CO Generated / NM
0.0302
0.0011
kg/kg
Soot Yield = Soot Generated / NM
0.0140
0.0029
kg/kg
Baseline Hood Exhaust Flow
20.43
0.61
kg/s
Test Duration = Time(Fire Out) - Time(Ignition)
34.67
0.03
min

Uc = Combined Expanded Uncertainty with 95% confidence level

Table 3. Summary of Test Input Parameters
Parameter Value Uc Unit
Fuel Type
Polyurethane Foam
 - -
Hood Size
9
 -
m
Effective Duct Diameter
1.975
0.005
m
Exhaust Flow Correction Factor
1.055
0.034
 -
Net Heat of Combustion (per unit mass O2), Ef
13.10
0.52
MJ/kg
Net Heat of Combustion(per unit mass fuel), HOCf
25.00
0.80
MJ/kg
Initial Specimen Mass, Mi (gravimetric)
57.64
0.02
kg
Final Specimen Mass, Mf (gravimetric)
5.52
0.02
kg
Plot of Fire Heat Release Rate with event markers. Uncertainty bar shown at peak value.
Figure 1. Plot of Heat Release Rate data with event markers and error bars shown at peak.
Download
Table 4. Summary of Observed Test Events
Event Time (min) Description Video Snapshot Image
1
0.00
Ignition
Ignition
Download
2
4.62
Pool Fire underneath
Pool Fire underneath
Download
peak
6.25
Peak HRR
Peak HRR
Download
3
32.03
Raking coals
Raking coals
Download
4
34.30
water suppression
water suppression
Download
5
34.67
Fire Out
Fire Out
Download

Table 5. Supplemental Data Plots

Plot of Oxygen Dry Volume Fraction in hood exhaust stream.
Plot of Oxygen Dry Volume Fraction in hood exhaust stream.
Download
Plot of Carbon Dioxide Dry Volume Fraction in hood exhaust stream.
Plot of Carbon Dioxide Dry Volume Fraction in hood exhaust stream.
Download
Plot of Carbon Monoxide Dry Volume Fraction in hood exhaust stream.
Plot of Carbon Monoxide Dry Volume Fraction in hood exhaust stream.
Download
Plot of Radiant Heat Flux data with event markers. r= radial distance from center of hood, h=height above floor.
Plot of Radiant Heat Flux data with event markers. r= radial distance from center of hood, h=height above floor.
Download
Plot of Smoke Laser Extinction Coefficient in hood exhaust stream.
Plot of Smoke Laser Extinction Coefficient in hood exhaust stream.
Download

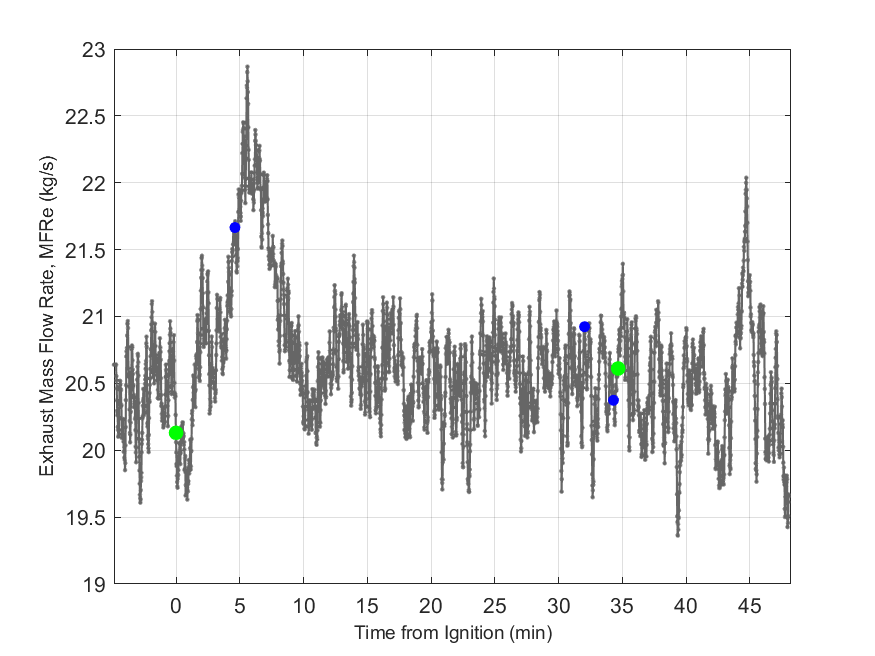

Plot of Exhaust Duct Mass Flow Rate.
Plot of Exhaust Duct Mass Flow Rate.
Download

Bryant, R. and Bundy, M. The NIST 20 MW Calorimetry Measurement System for Large-Fire Research, Technical Note (NIST TN) 2077, 2019
https://doi.org/10.6028/NIST.TN.2077(link is external)

NIST Fire Calorimetry Database (FCD)
https://doi.org/10.18434/mds2-2314(link is external)

Report Process Script Version
NFRL_Report_8.5.7
