National Fire Research Laboratory

Vehicle3

Table 1. Test Information
Name
Vehicle3
Date
Description

2010 blue hybrid sedan mass = 1274 kg. Li-Ion Battery removed. 6 gallons of gasoline in fuel tank. Primary ignition with 1 liter kerosene soaked rags to ignite the 6 cm bed of pine straw mulch (21.0 kg) under car.
Specimen
Compact Hybrid Vehicle
Ignition
kerosene soaked rags
Project ID (s)
Design Fires - Vehicles on Pine Straw Bed
Test Director
Hamins

Timelapse Video with Heat Release Rate Plot

Table 2. Summary of Test Results
Measurement Value Uc Unit
Peak Heat Release Rate, PHRR
8,527
507
kW
Time to Peak Heat Release Rate
11.95
0.07
min
Total Heat Released, THR
7,817
489
MJ
Gas Burner Total Heat Released, NGTHR
1
 -
MJ
Heat Release Quality Confirmation, HRQC
 Not measured -
MJ/MJ
Net Specimen Mass (gravimetric), NM = Mi-Mf
241.2
5.7
kg
Net Effective Heat of Combustion = THR / NM
32.4
2.2
MJ/kg
O2 Yield = O2 Consumed / NM
2.388
0.095
kg/kg
CO2 Yield = CO2 Generated / NM
2.38
0.10
kg/kg
CO Yield = CO Generated / NM
0.0436
0.0019
kg/kg
Soot Yield = Soot Generated / NM
0.0417
0.0054
kg/kg
Baseline Hood Exhaust Flow
73.4
2.2
kg/s
Test Duration = Time(Fire Out) - Time(Ignition)
94.42
0.03
min

Uc = Combined Expanded Uncertainty with 95% confidence level

Table 3. Summary of Test Input Parameters
Parameter Value Uc Unit
Fuel Type
Generic
 - -
Hood Size
15
 -
m
Effective Duct Diameter
2.424
0.009
m
Exhaust Flow Correction Factor
1.042
0.032
 -
Net Heat of Combustion (per unit mass O2), Ef
13.10
0.66
MJ/kg
Net Heat of Combustion(per unit mass fuel), HOCf
25.00
7.50
MJ/kg
Initial Specimen Mass, Mi (gravimetric)
1,295.00
4.00
kg
Final Specimen Mass, Mf (gravimetric)
1,053.78
4.00
kg
Plot of Fire Heat Release Rate with event markers. Uncertainty bar shown at peak value.
Figure 1. Plot of Heat Release Rate data with event markers and error bars shown at peak.
Download
Table 4. Summary of Observed Test Events
Event Time (min) Description Video Snapshot Image
1
0.00
Ignition
Ignition
Download
2
9.92
loud bangs from air bag
loud bangs from air bag
Download
peak
11.95
Peak HRR
Peak HRR
Download
3
80.82
start water suppression of hot spots
start water suppression of hot spots
Download
4
83.17
remove magnesium hunk
remove magnesium hunk
Download
5
94.42
Fire Out
Fire Out
Download

Table 5. Supplemental Data Plots

Plot of Oxygen Dry Volume Fraction in hood exhaust stream.
Plot of Oxygen Dry Volume Fraction in hood exhaust stream.
Download

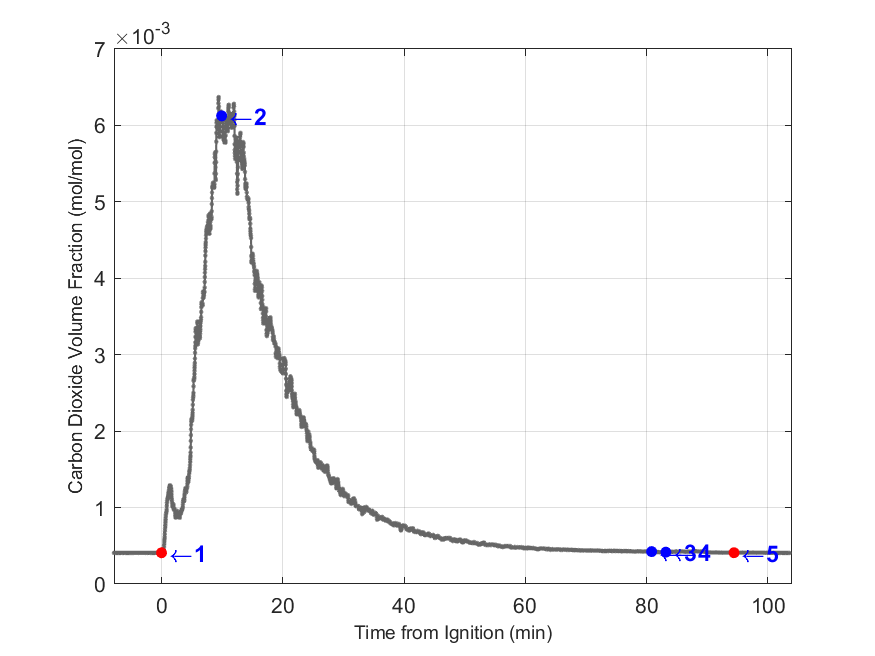

Plot of Carbon Dioxide Dry Volume Fraction in hood exhaust stream.
Plot of Carbon Dioxide Dry Volume Fraction in hood exhaust stream.
Download
Plot of Carbon Monoxide Dry Volume Fraction in hood exhaust stream.
Plot of Carbon Monoxide Dry Volume Fraction in hood exhaust stream.
Download
Plot of Radiant Heat Flux data with event markers. r= radial distance from center of hood, h=height above floor.
Plot of Radiant Heat Flux data with event markers. r= radial distance from center of hood, h=height above floor.
Download
Plot of Smoke Laser Extinction Coefficient in hood exhaust stream.
Plot of Smoke Laser Extinction Coefficient in hood exhaust stream.
Download
Plot of Exhaust Duct Mass Flow Rate.
Plot of Exhaust Duct Mass Flow Rate.
Download

Bryant, R. and Bundy, M. The NIST 20 MW Calorimetry Measurement System for Large-Fire Research, Technical Note (NIST TN) 2077, 2019
https://doi.org/10.6028/NIST.TN.2077(link is external)

NIST Fire Calorimetry Database (FCD)
https://doi.org/10.18434/mds2-2314(link is external)

Report Process Script Version
NFRL_Report_8.6.0
Last Updated April 3, 2025
