Return to NIST Technical Note 1483
Data
Data for the test are available in a comma-separated spreadsheet file
Summary Data plots

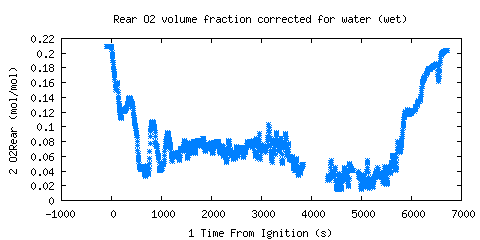

Rear O2 volume fraction corrected for water (wet) (O2Rear )
![Rear O2 volume fraction corrected for water (wet) (O2Rear ) Rear O2 volume fraction corrected for water (wet) (O2Rear )](/sites/default/files/images/el/fire_research/plt4_02_1.png)

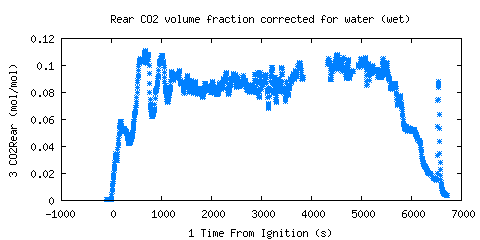

Rear CO2 volume fraction corrected for water (wet) (CO2Rear )
![Rear CO2 volume fraction corrected for water (wet) (CO2Rear ) Rear CO2 volume fraction corrected for water (wet) (CO2Rear )](/sites/default/files/images/el/fire_research/plt4_03.png)

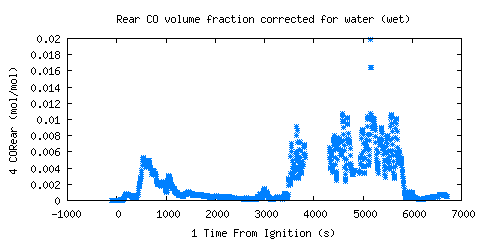

Rear CO volume fraction corrected for water (wet) (CORear )
![Rear CO volume fraction corrected for water (wet) (CORear ) Rear CO volume fraction corrected for water (wet) (CORear )](/sites/default/files/images/el/fire_research/plt4_04.png)
Rear Total Hydrocarbons volume fraction corrected for water (wet) (THCRear )
![Rear Total Hydrocarbons volume fraction corrected for water (wet) (THCRear ) Rear Total Hydrocarbons volume fraction corrected for water (wet) (THCRear )](/sites/default/files/images/el/fire_research/plt4_05.png)

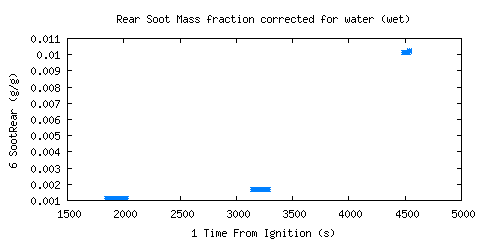

Rear Soot Mass fraction corrected for water (wet) (SootRear )
![Rear Soot Mass fraction corrected for water (wet) (SootRear ) Rear Soot Mass fraction corrected for water (wet) (SootRear )](/sites/default/files/images/el/fire_research/plt4_06.png)

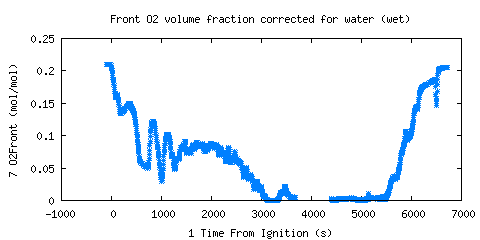

Front O2 volume fraction corrected for water (wet) (O2Front )

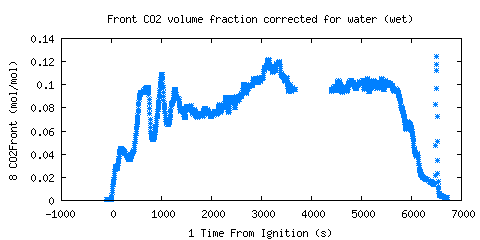

Front CO2 volume fraction corrected for water (wet) (CO2Front )
![plt4_08Front CO2 volume fraction corrected for water (wet) (CO2Front ) plt4_08Front CO2 volume fraction corrected for water (wet) (CO2Front )](/sites/default/files/images/el/fire_research/plt4_08_1.png)

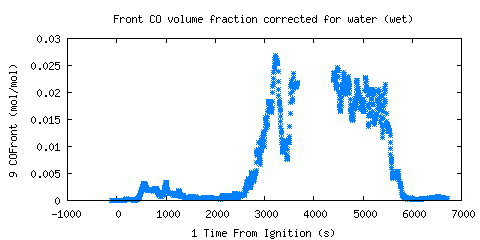

Front CO volume fraction corrected for water (wet) (COFront )
![plt4_09Front CO volume fraction corrected for water (wet) (COFront ) plt4_09Front CO volume fraction corrected for water (wet) (COFront )](/sites/default/files/images/el/fire_research/plt4_09_1.png)

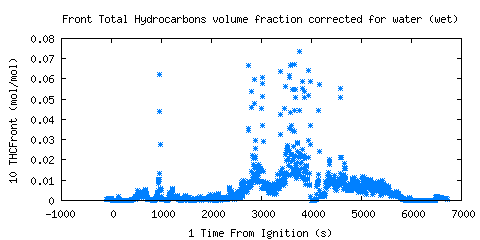

Front Total Hydrocarbons volume fraction corrected for water (wet) (THCFront )
![Front Total Hydrocarbons volume fraction corrected for water (wet) (THCFront ) Front Total Hydrocarbons volume fraction corrected for water (wet) (THCFront )](/sites/default/files/images/el/fire_research/plt4_10_1.png)

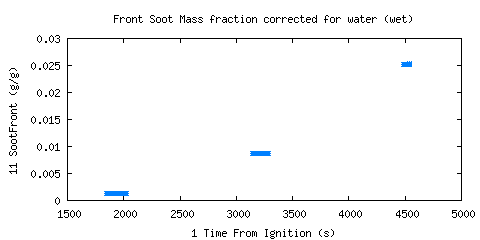

Front Soot Mass fraction corrected for water (wet) (SootFront )
![Front Soot Mass fraction corrected for water (wet) (SootFront ) Front Soot Mass fraction corrected for water (wet) (SootFront )](/sites/default/files/images/el/fire_research/plt4_11_1.png)

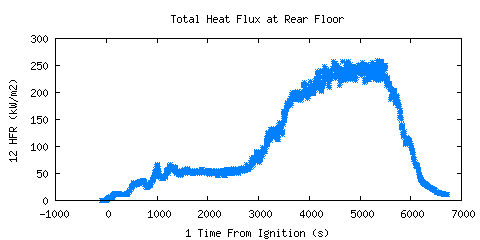

Total Heat Flux at Rear Floor (HFR )
![Total Heat Flux at Rear Floor (HFR ) Total Heat Flux at Rear Floor (HFR )](/sites/default/files/images/el/fire_research/plt4_12_1.png)

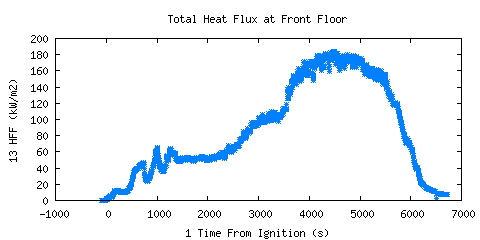

Total Heat Flux at Front Floor (HFF )
![Total Heat Flux at Front Floor (HFF ) Total Heat Flux at Front Floor (HFF )](/sites/default/files/images/el/fire_research/plt4_13_1.png)

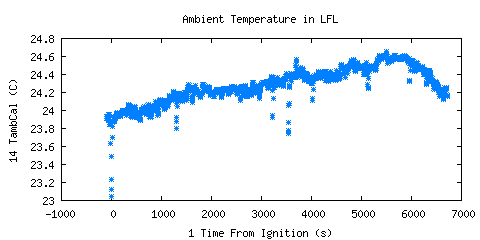

Ambient Temperature in LFL (TambCal )
![Ambient Temperature in LFL (TambCal ) Ambient Temperature in LFL (TambCal )](/sites/default/files/images/el/fire_research/plt4_14_4.png)

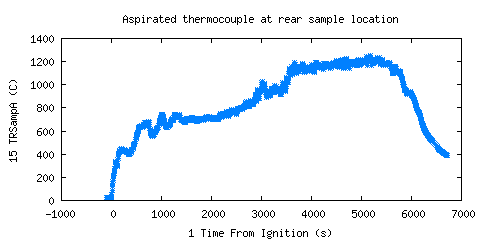

Aspirated thermocouple at rear sample location (TRSampA )
![Aspirated thermocouple at rear sample location (TRSampA ) Aspirated thermocouple at rear sample location (TRSampA )](/sites/default/files/images/el/fire_research/plt4_15.png)

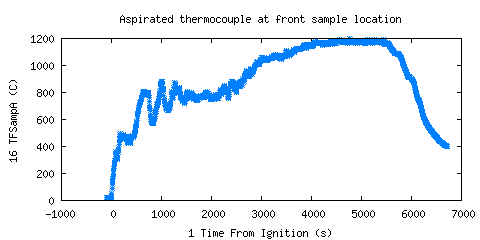

Aspirated thermocouple at front sample location (TFSampA )
![plt4_16 plt4_16](/sites/default/files/images/el/fire_research/plt4_16.png)

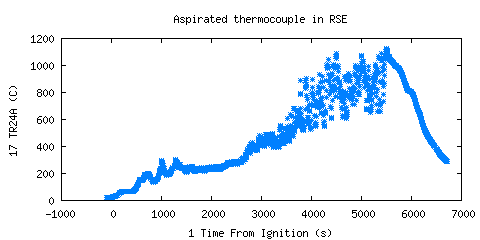

Aspirated thermocouple in RSE (TR24A )
![Aspirated thermocouple in RSE (TR24A ) Aspirated thermocouple in RSE (TR24A )](/sites/default/files/images/el/fire_research/plt4_17.png)

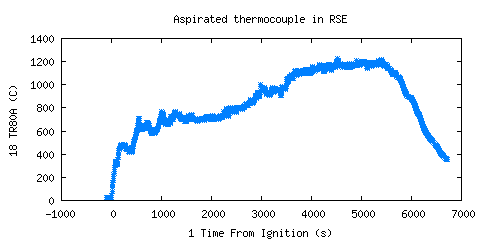

Aspirated thermocouple in RSE (TR80A )
![Aspirated thermocouple in RSE (TR80A ) Aspirated thermocouple in RSE (TR80A )](/sites/default/files/images/el/fire_research/plt4_18.png)

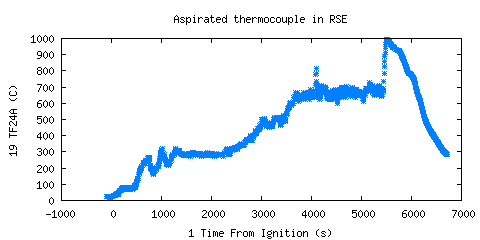

Aspirated thermocouple in RSE (TF24A )
![Aspirated thermocouple in RSE (TF24A ) Aspirated thermocouple in RSE (TF24A )](/sites/default/files/images/el/fire_research/plt4_19.png)

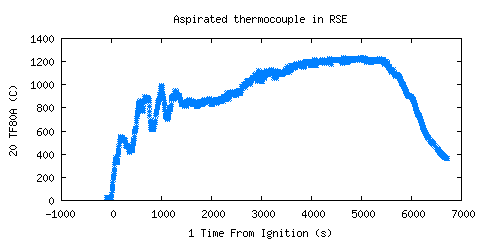

Aspirated thermocouple in RSE (TF80A )
![Aspirated thermocouple in RSE (TF80A ) Aspirated thermocouple in RSE (TF80A )](/sites/default/files/images/el/fire_research/plt4_20.png)
Bare-bead thermocouple near heat flux gauge (TFloorR )
![Bare-bead thermocouple near heat flux gauge (TFloorR ) Bare-bead thermocouple near heat flux gauge (TFloorR )](/sites/default/files/images/el/fire_research/plt4_21.png)

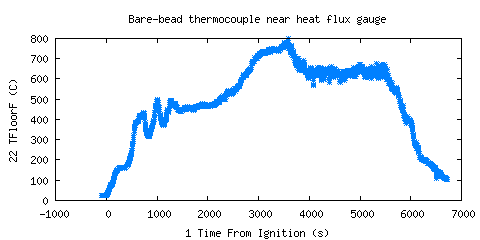

Bare-bead thermocouple near heat flux gauge (TFloorF )
![Bare-bead thermocouple near heat flux gauge (TFloorF ) Bare-bead thermocouple near heat flux gauge (TFloorF )](/sites/default/files/images/el/fire_research/plt4_22.png)
Bare-bead thermocouple on ceiling (TCeilF )
![Bare-bead thermocouple on ceiling (TCeilF ) Bare-bead thermocouple on ceiling (TCeilF )](/sites/default/files/images/el/fire_research/plt4_23_2.png)

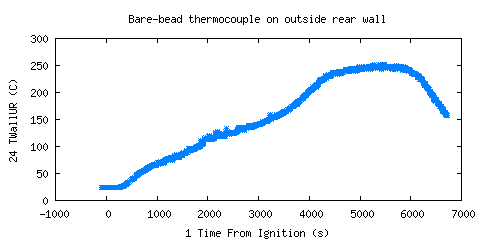

Bare-bead thermocouple on outside rear wall (TWallUR )
![Bare-bead thermocouple on outside rear wall (TWallUR ) Bare-bead thermocouple on outside rear wall (TWallUR )](/sites/default/files/images/el/fire_research/plt4_24.png)

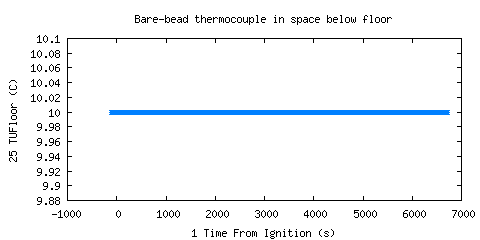

Bare-bead thermocouple in space below floor (TUFloor )
![Bare-bead thermocouple in space below floor (TUFloor ) Bare-bead thermocouple in space below floor (TUFloor )](/sites/default/files/images/el/fire_research/plt4_25.png)

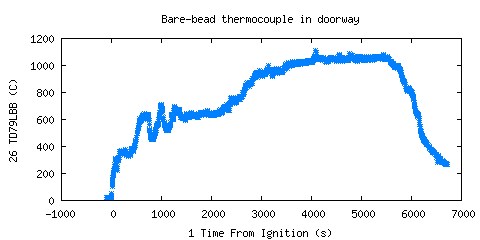

Bare-bead thermocouple in doorway (TD79LBB )
![Bare-bead thermocouple in doorway (TD79LBB ) Bare-bead thermocouple in doorway (TD79LBB )](/sites/default/files/images/el/fire_research/plt4_26.png)

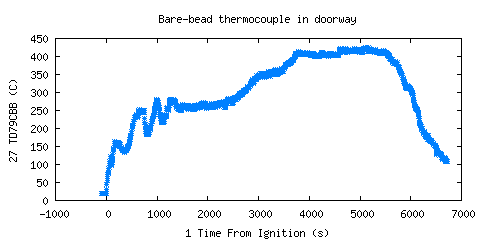

Bare-bead thermocouple in doorway (TD79CBB )
![Bare-bead thermocouple in doorway (TD79CBB ) Bare-bead thermocouple in doorway (TD79CBB )](/sites/default/files/images/el/fire_research/plt4_27.png)

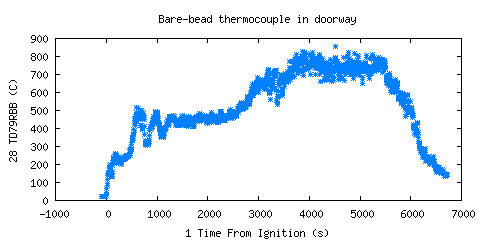

Bare-bead thermocouple in doorway (TD79RBB )
![Bare-bead thermocouple in doorway (TD79RBB ) Bare-bead thermocouple in doorway (TD79RBB )](/sites/default/files/images/el/fire_research/plt4_28.png)

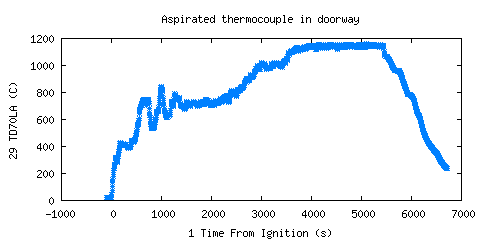

Aspirated thermocouple in doorway (TD70LA )
![Aspirated thermocouple in doorway (TD70LA ) Aspirated thermocouple in doorway (TD70LA )](/sites/default/files/images/el/fire_research/plt4_29.png)

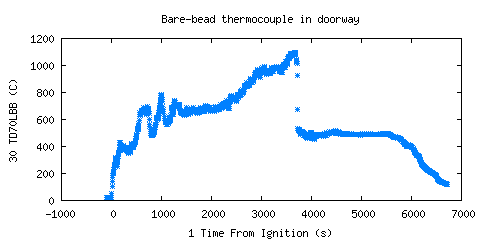

Bare-bead thermocouple in doorway (TD70LBB )
![Bare-bead thermocouple in doorway (TD70LBB ) Bare-bead thermocouple in doorway (TD70LBB )](/sites/default/files/images/el/fire_research/plt4_30.png)

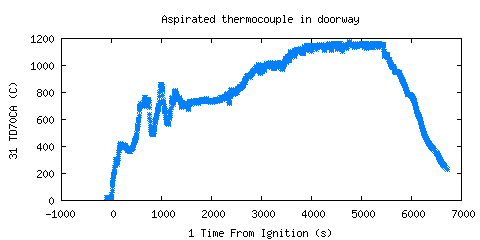

Aspirated thermocouple in doorway (TD70CA )
![Aspirated thermocouple in doorway (TD70CA ) Aspirated thermocouple in doorway (TD70CA )](/sites/default/files/images/el/fire_research/plt4_31.png)

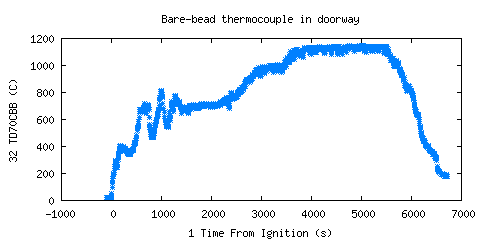

Bare-bead thermocouple in doorway (TD70CBB )
![Bare-bead thermocouple in doorway (TD70CBB ) Bare-bead thermocouple in doorway (TD70CBB )](/sites/default/files/images/el/fire_research/plt4_32.png)

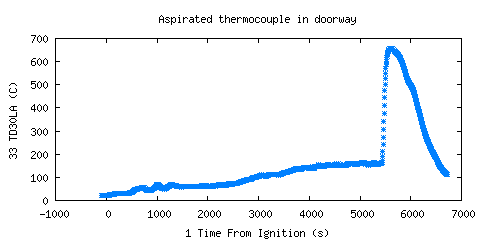

Aspirated thermocouple in doorway (TD30LA )
![Aspirated thermocouple in doorway (TD30LA ) Aspirated thermocouple in doorway (TD30LA )](/sites/default/files/images/el/fire_research/plt4_33.png)

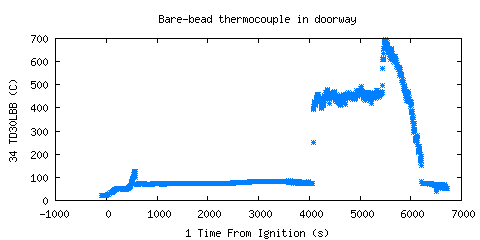

Bare-bead thermocouple in doorway (TD30LBB )
![Bare-bead thermocouple in doorway (TD30LBB ) Bare-bead thermocouple in doorway (TD30LBB )](/sites/default/files/images/el/fire_research/plt4_34.png)

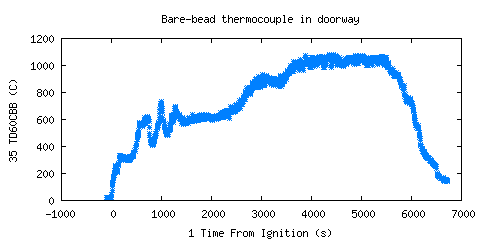

Bare-bead thermocouple in doorway (TD60CBB )
![Bare-bead thermocouple in doorway (TD60CBB ) Bare-bead thermocouple in doorway (TD60CBB )](/sites/default/files/images/el/fire_research/plt4_35.png)

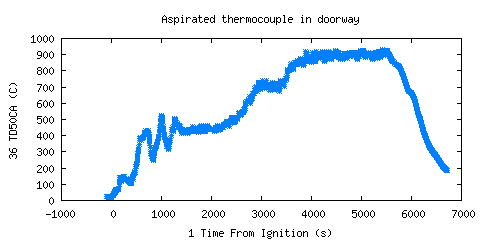

Aspirated thermocouple in doorway (TD50CA )
![Aspirated thermocouple in doorway (TD50CA ) Aspirated thermocouple in doorway (TD50CA )](/sites/default/files/images/el/fire_research/plt4_36.png)

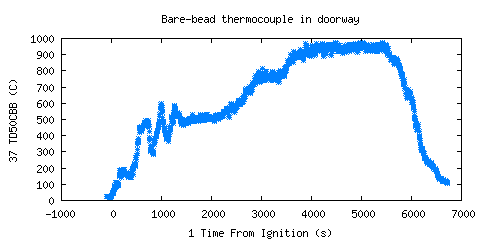

Bare-bead thermocouple in doorway (TD50CBB )
![Bare-bead thermocouple in doorway (TD50CBB ) Bare-bead thermocouple in doorway (TD50CBB )](/sites/default/files/images/el/fire_research/plt4_37.png)

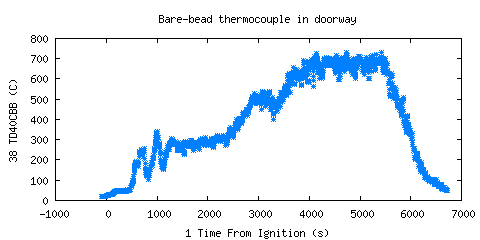

Bare-bead thermocouple in doorway (TD40CBB )
![Bare-bead thermocouple in doorway (TD40CBB ) Bare-bead thermocouple in doorway (TD40CBB )](/sites/default/files/images/el/fire_research/plt4_38.png)

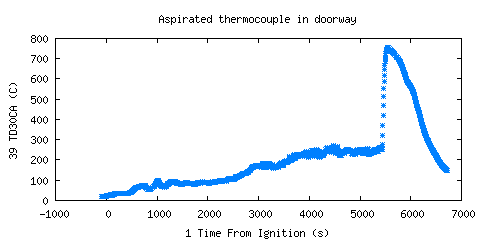

Aspirated thermocouple in doorway (TD30CA )
![Aspirated thermocouple in doorway (TD30CA ) Aspirated thermocouple in doorway (TD30CA )](/sites/default/files/images/el/fire_research/plt4_39.png)

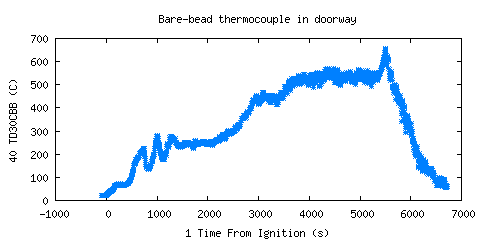

Bare-bead thermocouple in doorway (TD30CBB )
![Bare-bead thermocouple in doorway (TD30CBB ) Bare-bead thermocouple in doorway (TD30CBB )](/sites/default/files/images/el/fire_research/plt4_40.png)

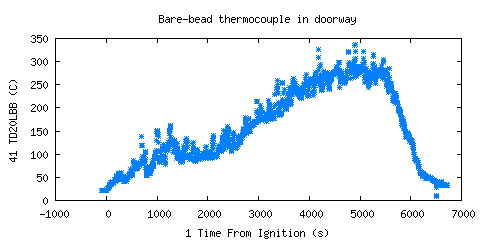

Bare-bead thermocouple in doorway (TD20LBB )
![Bare-bead thermocouple in doorway (TD20LBB ) Bare-bead thermocouple in doorway (TD20LBB )](/sites/default/files/images/el/fire_research/plt4_41.png)

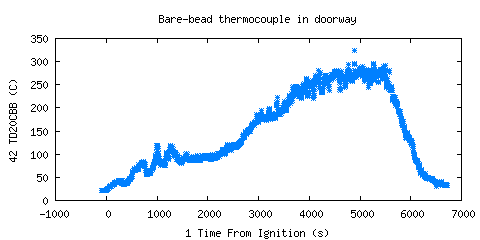

Bare-bead thermocouple in doorway (TD20CBB )
![Bare-bead thermocouple in doorway (TD20CBB ) Bare-bead thermocouple in doorway (TD20CBB )](/sites/default/files/images/el/fire_research/plt4_42.png)

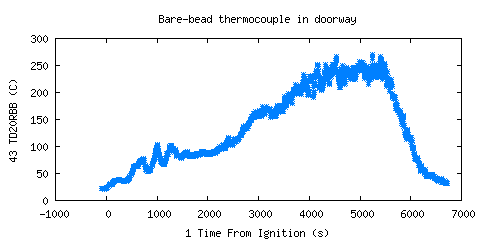

Bare-bead thermocouple in doorway (TD20RBB )
![Bare-bead thermocouple in doorway (TD20RBB ) Bare-bead thermocouple in doorway (TD20RBB )](/sites/default/files/images/el/fire_research/plt4_43.png)

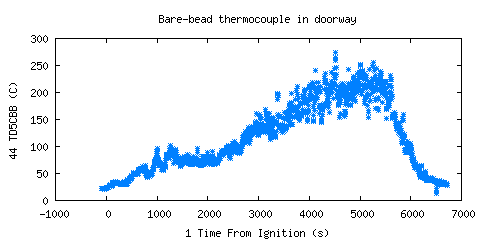

Bare-bead thermocouple in doorway (TD5CBB )
![Bare-bead thermocouple in doorway (TD5CBB ) Bare-bead thermocouple in doorway (TD5CBB )](/sites/default/files/images/el/fire_research/plt4_44.png)

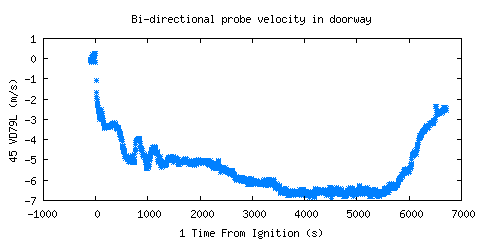

Bi-directional probe velocity in doorway (VD79L )
![Bi-directional probe velocity in doorway (VD79L ) Bi-directional probe velocity in doorway (VD79L )](/sites/default/files/images/el/fire_research/plt4_45.png)

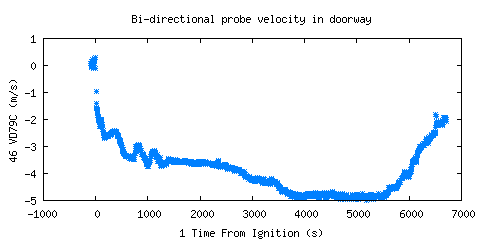

Bi-directional probe velocity in doorway (VD79C )
![Bi-directional probe velocity in doorway (VD79C ) Bi-directional probe velocity in doorway (VD79C )](/sites/default/files/images/el/fire_research/plt4_46.png)

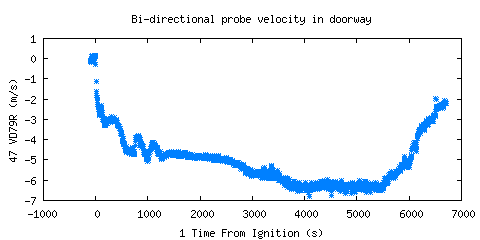

Bi-directional probe velocity in doorway (VD79R )
![Bi-directional probe velocity in doorway (VD79R ) Bi-directional probe velocity in doorway (VD79R )](/sites/default/files/images/el/fire_research/plt4_47.png)

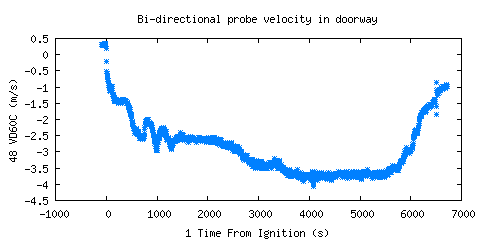

Bi-directional probe velocity in doorway (VD60C )
![Bi-directional probe velocity in doorway (VD60C ) Bi-directional probe velocity in doorway (VD60C )](/sites/default/files/images/el/fire_research/plt4_48.png)

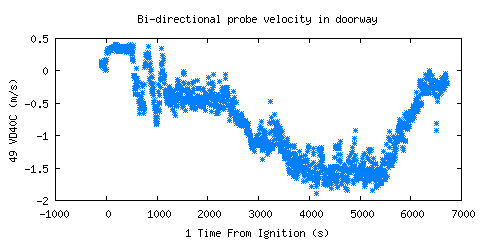

Bi-directional probe velocity in doorway (VD40C )
![Bi-directional probe velocity in doorway (VD40C ) Bi-directional probe velocity in doorway (VD40C )](/sites/default/files/images/el/fire_research/plt4_49.png)

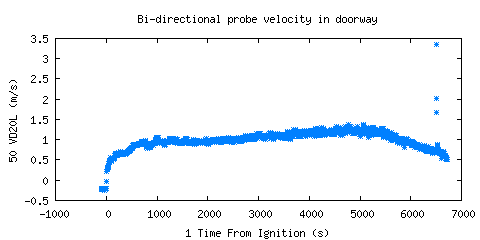

Bi-directional probe velocity in doorway (VD20L )
![Bi-directional probe velocity in doorway (VD20L ) Bi-directional probe velocity in doorway (VD20L )](/sites/default/files/images/el/fire_research/plt4_50.png)

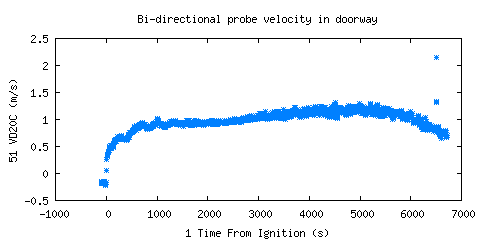

Bi-directional probe velocity in doorway (VD20C )
![Bi-directional probe velocity in doorway (VD20C ) Bi-directional probe velocity in doorway (VD20C )](/sites/default/files/images/el/fire_research/plt4_51.png)

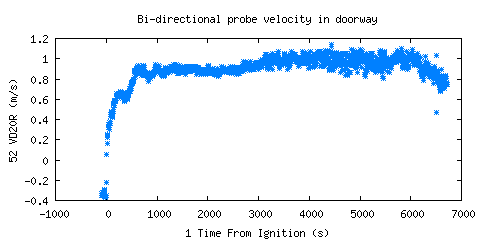

Bi-directional probe velocity in doorway (VD20R )
![Bi-directional probe velocity in doorway (VD20R ) Bi-directional probe velocity in doorway (VD20R )](/sites/default/files/images/el/fire_research/plt4_52.png)

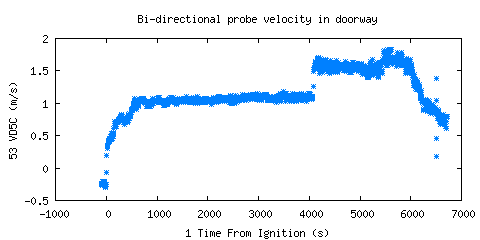

Bi-directional probe velocity in doorway (VD5C )
![Bi-directional probe velocity in doorway (VD5C ) Bi-directional probe velocity in doorway (VD5C )](/sites/default/files/images/el/fire_research/plt4_53.png)

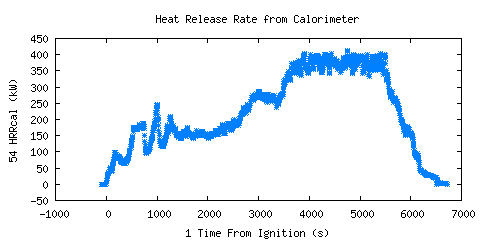

Heat Release Rate from Calorimeter (HRRcal )
![Heat Release Rate from Calorimeter (HRRcal ) Heat Release Rate from Calorimeter (HRRcal )](/sites/default/files/images/el/fire_research/plt4_54.png)

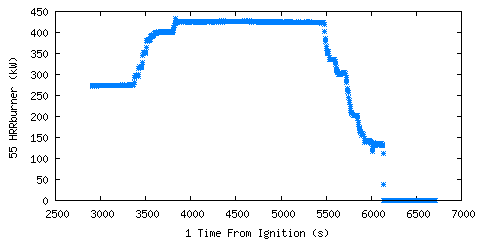

Heat Release Rate from Burner (gas (HRRburner )
![Heat Release Rate from Burner (gas (HRRburner ) Heat Release Rate from Burner (gas (HRRburner )](/sites/default/files/images/el/fire_research/plt4_55.png)

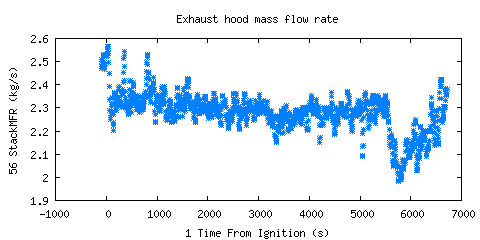

Exhaust hood mass flow rate (StackMFR )
![Exhaust hood mass flow rate (StackMFR ) Exhaust hood mass flow rate (StackMFR )](/sites/default/files/images/el/fire_research/plt4_56.png)

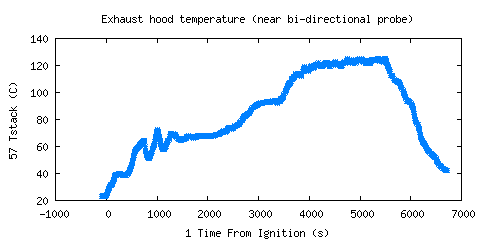

Exhaust hood temperature (near bi-directional probe) (Tstack )
![Exhaust hood temperature (near bi-directional probe) (Tstack ) Exhaust hood temperature (near bi-directional probe) (Tstack )](/sites/default/files/images/el/fire_research/plt4_57.png)

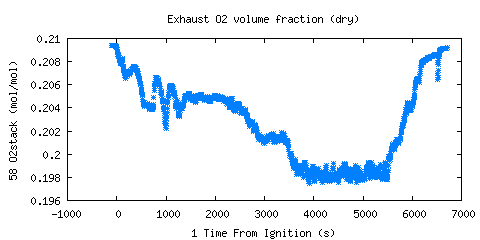

Exhaust O2 volume fraction (dry) (O2stack )
![Exhaust O2 volume fraction (dry) (O2stack ) Exhaust O2 volume fraction (dry) (O2stack )](/sites/default/files/images/el/fire_research/plt4_58.png)

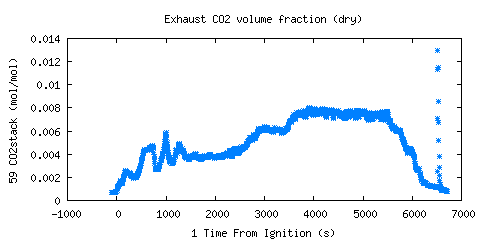

Exhaust CO2 volume fraction (dry) (CO2stack )
![Exhaust CO2 volume fraction (dry) (CO2stack ) Exhaust CO2 volume fraction (dry) (CO2stack )](/sites/default/files/images/el/fire_research/plt4_59.png)

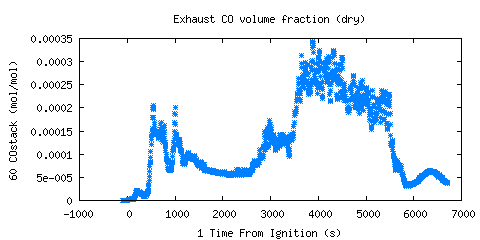

Exhaust CO volume fraction (dry) (COstack )
![Exhaust CO volume fraction (dry) (COstack ) Exhaust CO volume fraction (dry) (COstack )](/sites/default/files/images/el/fire_research/plt4_60.png)

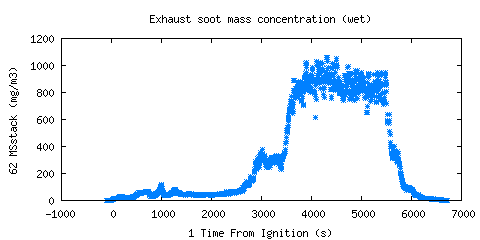

Exhaust soot mass concentration (wet) (MSstack )
![Exhaust soot mass concentration (wet) (MSstack ) Exhaust soot mass concentration (wet) (MSstack )](/sites/default/files/images/el/fire_research/plt4_62.png)

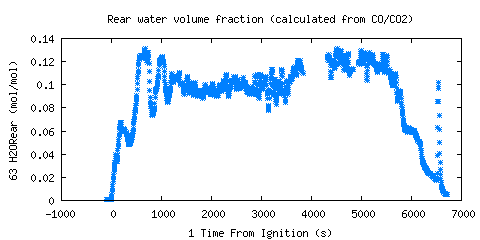

Rear water volume fraction (calculated from CO/CO2) (H2ORear )
![Rear water volume fraction (calculated from CO/CO2) (H2ORear ) Rear water volume fraction (calculated from CO/CO2) (H2ORear )](/sites/default/files/images/el/fire_research/plt4_63.png)

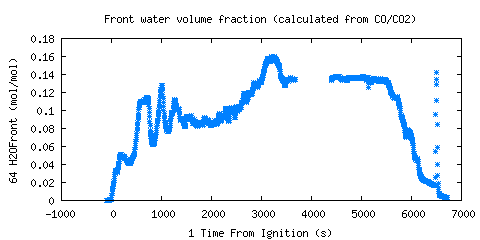

Front water volume fraction (calculated from CO/CO2) (H2OFront )
![Front water volume fraction (calculated from CO/CO2) (H2OFront ) Front water volume fraction (calculated from CO/CO2) (H2OFront )](/sites/default/files/images/el/fire_research/plt4_64.png)
