NIST on a Chip

Flow and Pressure

Share

The Technology

microflow system
Close-up of a microflow system with red dye in fluid channel.

NIST scientists are developing next-generation microfluidics devices that can rapidly and accurately measure and control flow and pressure of biological and other kinds of fluids in extremely small volumes. Teams have developed standards that measure flows of 1 µL per minute with an uncertainty of less than 1% and are pushing toward ever smaller values.

Other NIST projects are devising chip-scale methods of measuring how properties such as pH and temperature affect the behavior of protein solutions or clusters of antibodies. These devices use pressure sources to drive fluids through microcapillaries and record the flow under different conditions.

Another priority goal is development of a variety of novel sensor technologies and modalities to analyze fluid properties. NIST teams are focused on finding more accurate, high-resolution ways to characterize the behavior of viscous (thick) and semisolid fluids using light beams, advanced microscopy, hologram images of suspended particles, and more.

Finally, NIST scientists are making groundbreaking progress on providing much-needed calibration standards for instruments and procedures to ensure that microfluidic measurements made in different laboratories are reproducible and comparable.

Measuring the Flow of Tiny Amounts of Liquid, with Light
Measuring the Flow of Tiny Amounts of Liquid, with Light
Researchers want to measure the flow of liquids at rates as small as ten-billionths of a liter per minute. This rate of flow is so slow that if you tried to pour yourself a glass of soda, it would take 68 years to empty the can. Manipulating tiny amounts of liquid is useful for things like managing doses of medicine and controlling chemical mixtures for manufacturing. This animation demonstrates how NIST scientists can measure tiny rates of flow using laser light.
Measuring Flow Rate with Fluorescence
Measuring Flow Rate with Fluorescence

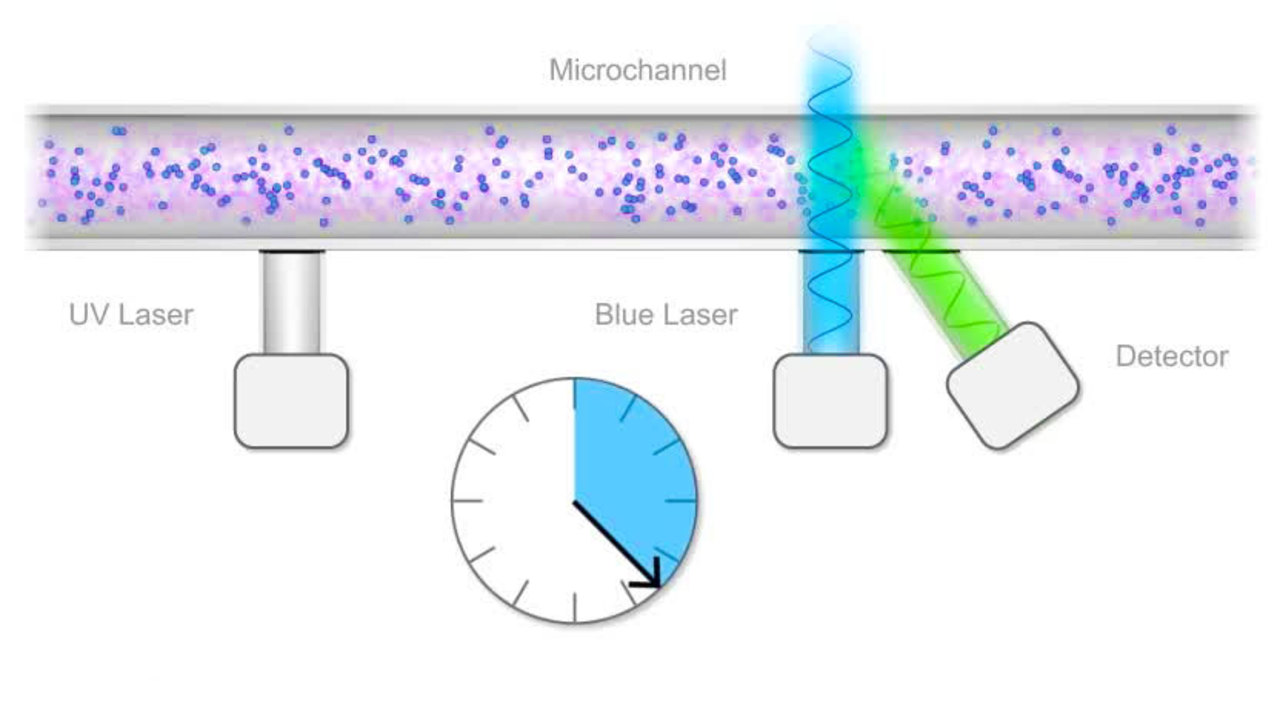

Flowing down a microchannel is a fluid filled with fluorescent molecules that emit green light when exposed to a specific wavelength of blue light. However, these molecules have been chemically modified to prevent fluorescence. At one point in the channel, an ultraviolet laser destroys the chemical modification of some of the molecules. At another point in the channel, a blue laser causes these bare molecules to fluoresce. Researchers determine flow rate by measuring the elapsed time between removing the chemical modification and fluorescence. Credit: Sean Kelley/NIST

Advantages Over Existing Technologies

NIST scientists are improving on NIST’s dynamic gravimetric micro-flow standard, which currently provides calibrations of flow, usually of thermal flow meters. These devices track how much heat a moving fluid absorbs from a heater in the channel: The slower the flow, the more the fluid heats up. The standard provides a stable reference with documented levels of uncertainty for evaluating the accuracy and long-term stability of existing, commercially available flow meters. It also allows NIST researchers to test their new flow meter designs.

Other innovations can make possible measurements that are now extremely difficult or impossible. For example, one design uses light to track the changing position of particles suspended in liquid to determine their velocity. That method is more accurate at lower flow rates and can also be used to precisely determine zero flow.

In another example, NIST research will likely prove vitally important for fully understanding how many biological fluids (such as blood) respond to mechanical stresses. These fluids are more complex than water, which displays the same viscosity regardless of the level of mechanical stress. NIST researchers are devising novel chip-scale sensors to measure the fine-scale details of blood coagulation, the clumping of antibodies that fight infection, and other medically important properties — information not fully available at present.

Applications

Many of today’s sophisticated drugs must be delivered at specific ultra-small doses, with very narrow margins of error. Many manufacturing processes demand that tiny amounts of fluids be mixed in extremely precise ratios under carefully controlled conditions. And many important discoveries in industrial chemistry and pharmaceutical research often result from evaluating scores of combinations of different test ingredients that flow together in nL quantities. Any improvements in those techniques can have a substantial near-term impact.

In addition, many of NIST’s emerging microfluidic technologies will find their way into a new form of medical testing called “point of care” (POC) diagnostics. Instead of sending large samples of blood or other fluids off to a laboratory, a health care worker could apply chip-scale sensors directly to patients in the clinic and obtain results almost immediately. A few POC devices are already in use for blood-sugar monitoring, drug detection, immune-system monitoring and other applications. The worldwide market is expected to expand rapidly.

Key Papers

J.W. Schmidt and J.D. Wright. Micro-Flow Calibration Facility at NIST. International Symposium for Fluid Flow Measurement. April 2015.

G.A. Cooksey, P. Patrone, J.R. Hands, S.E. Meek and A.J. Kearsley. Dynamic Measurement of Nanoflows: Realization of a Multidecadal Optofluidic Flow Meter to the nanoliter per minute scale. Analytical Chemistry. Aug. 8, 2019. DOI: 10.1021/acs.analchem.9b02056

P. Patrone, G.A. Cooksey and A.J. Kearsley. Analysis and Theory of an Optofluidic Flowmeter. Physical Review Applied. March 11, 2019. DOI: 10.1103/PhysRevApplied.11.034025

P.F. Salipante,  S.D. Hudson, J.W. Schmidt and J.D. Wright. Microparticle tracking velocimetry as a tool for microfluidic flow measurements. Experiments in Fluids. June 7, 2017. DOI: 10.1007/s00348-017-2362-6

P.F. Salipante, C.A.E. Little and S.D. Hudson. Jetting of a shear banding fluid in rectangular ducts. Physical Review Fluids. March 14, 2017. DOI: 10.1103/PhysRevFluids.2.033302

A.C. Stelson, C.M. Hong, C. Little, J. Booth, R.G. Bergman, K.N. Raymond, F.D. Toste and C. Long. Measuring Ion-Pairing and Hydration in Variable Charge Supramolecular Cages with Microwave Microfluidics. Journal of the American Chemical Society. May 17, 2019. DOI: 10.1038/s42004-019-0157-9

X. Ma, N.D. Orloff, C. Little, C.J. Long, I.E. Hanemann, S. Liu, J. Mateu, J.C. Booth and J.C.M. Hwang. A Multistate Single-Connection Calibration for Microwave Microfluidics. IEEE Transactions On Microwave Theory and Techniques. Oct. 12, 2017. DOI: 10.1109/TMTT.2017.2758364

P. Niu, B. Nablo, K. Bhadriraju and D. Reyes-Hernandez. Uncovering the Contribution of Microchannel Deformation to Impedance-based Flow Rate Measurements. Analytical Chemistry. Sept. 29, 2017. DOI: 10.1021/acs.analchem.7b02287

Metrology, Flow metrology and rheology, Nanotechnology, Nanofluidics, Physics and Biological physics
